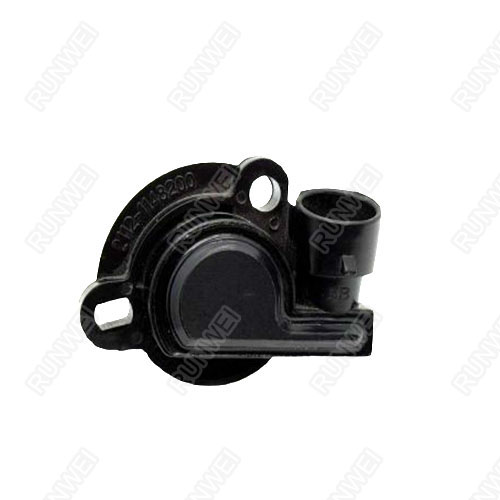

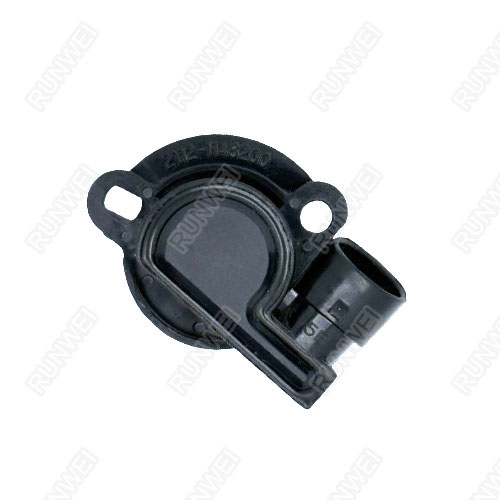

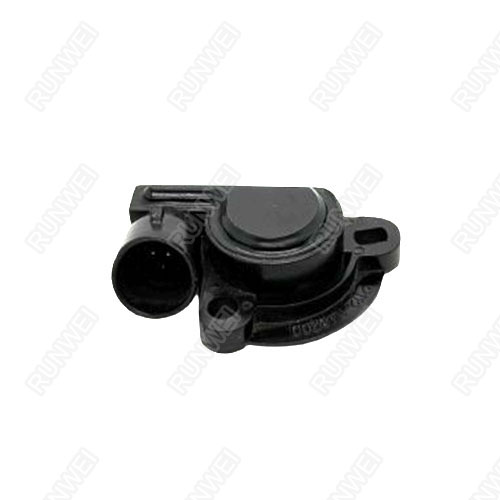

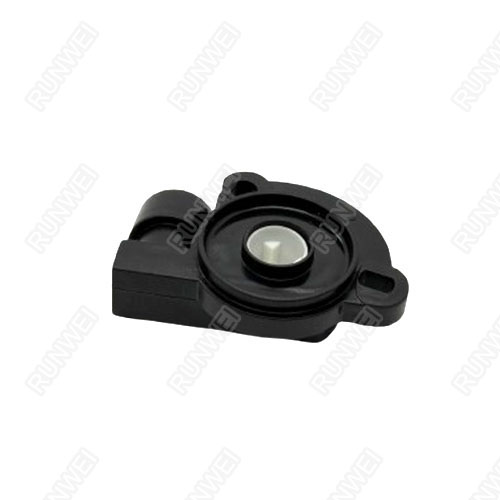

Throttle position sensor for Lada 2112-1148200

Part Name:

Throttle Position Sensor

OEM:

1118-3843010-04

Application:

It is used on cars VAZ 2108, 2109, 2110, 2114, 2115 and their modifications with injector engines.

Intended for installation on motor housing throttle “WHA” with distributed fuel injection system for converting the angular displacement of the throttle valve in a proportional change in voltage; control unit is used for fuel control.

Specifications:

• Operating temperature range, C: – 40 … + 125
• Breakout moment Nm (POL): 0.05 – 0.12 (500 – 1200)
• Mechanical factors:
• Sinusoidal vibrations:
• frequencies, Hz: 20 – 2000
• the amplitude of the acceleration in m / s2 (g): 200 (20)
• Mass: not more than 0,03 kg.
• Dimensions :: 55h41h24 mm.

Packaging:

Neutral packaging, can be made into color box according to customer requirements, depending on the quantity.
