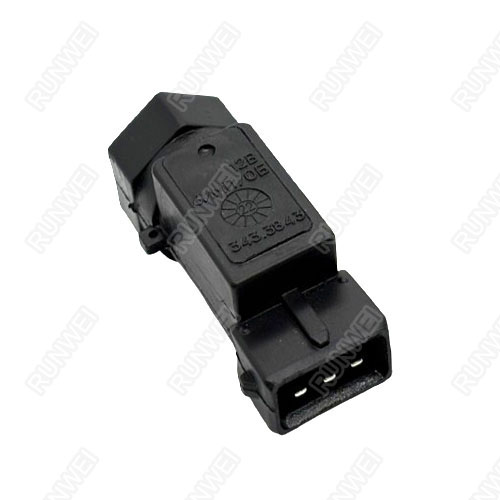

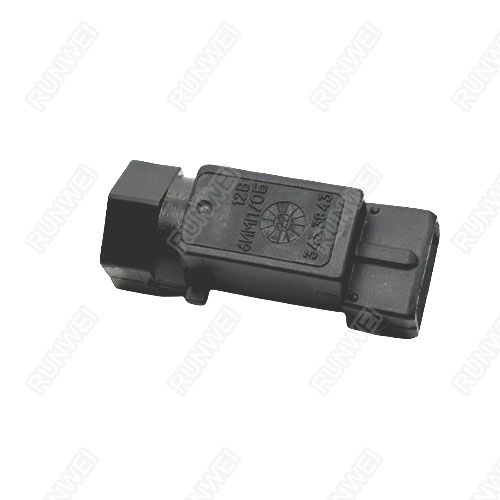

Speed Sensor for Lada 343.3843 2111-3843010

Part Name: Speed Sensor

OEM: 343.3843, 2111-3843010, 2111-3843010-00, 51.3843

Scope of application: VAZ-2110, 2111, 2112 (all variants and instrument combinations, including carburetor instruments), as well as the 2108-2115 series with electronic speedometers, except for vehicles equipped with GM and January-4.1 ECM.

The rotational speed sensor 343.3843 is used to convert the rotational frequency of the drive shaft into an electrical pulse frequency proportional to the vehicle speed, or to convert the number of revolutions of the drive shaft into the number of electrical pulses proportional to the distance traveled by the vehicle, and is also used in the fuel injection control system of the engine under various vehicle driving conditions.

Main technical characteristics:
Operating temperature: -40° C to +125° C
Nominal supply voltage, V: 12
Operating range of supply voltage, V:
Through contact circuit “1” from 7 to 15
Through contact circuit “2”, with a load current not exceeding 20 mA from 5 to 15
Maximum current consumption through contact circuit “1” when the supply voltage is (13.5 ± 0.2) V, not exceeding, mA: 15

Packaging: Neutral packaging, can be made into color box according to customer requirements, depending on the quantity.
